The Project Pad

Posted: **Tue Jan 27, 2026 7:11 pm**

Like a glove!

Posted: **Fri Jan 30, 2026 2:16 pm**

rennenmsports wrote: Mon Nov 03, 2025 1:28 pm Hello again. It’s been a long time. I decided to keep it. Too sentimental. The piston rings went. I’m going to be able to get a short block from Marc in about 6 months. Now that I know which turbine housing I’m going to use I can make the exhaust and intake as well.

Glad you kept it! I've been checking out your build. Love the airbox

Posted: **Mon Feb 02, 2026 8:28 pm**

audifreakjim wrote: Fri Jan 30, 2026 2:16 pm
rennenmsports wrote: Mon Nov 03, 2025 1:28 pm Hello again. It’s been a long time. I decided to keep it. Too sentimental. The piston rings went. I’m going to be able to get a short block from Marc in about 6 months. Now that I know which turbine housing I’m going to use I can make the exhaust and intake as well.
Glad you kept it! I've been checking out your build. Love the airbox

Thank you! I worked hard on this. I’m glad you like it. Hopefully it will be ready to tune by the end of April

Posted: **Thu Feb 05, 2026 11:16 am**

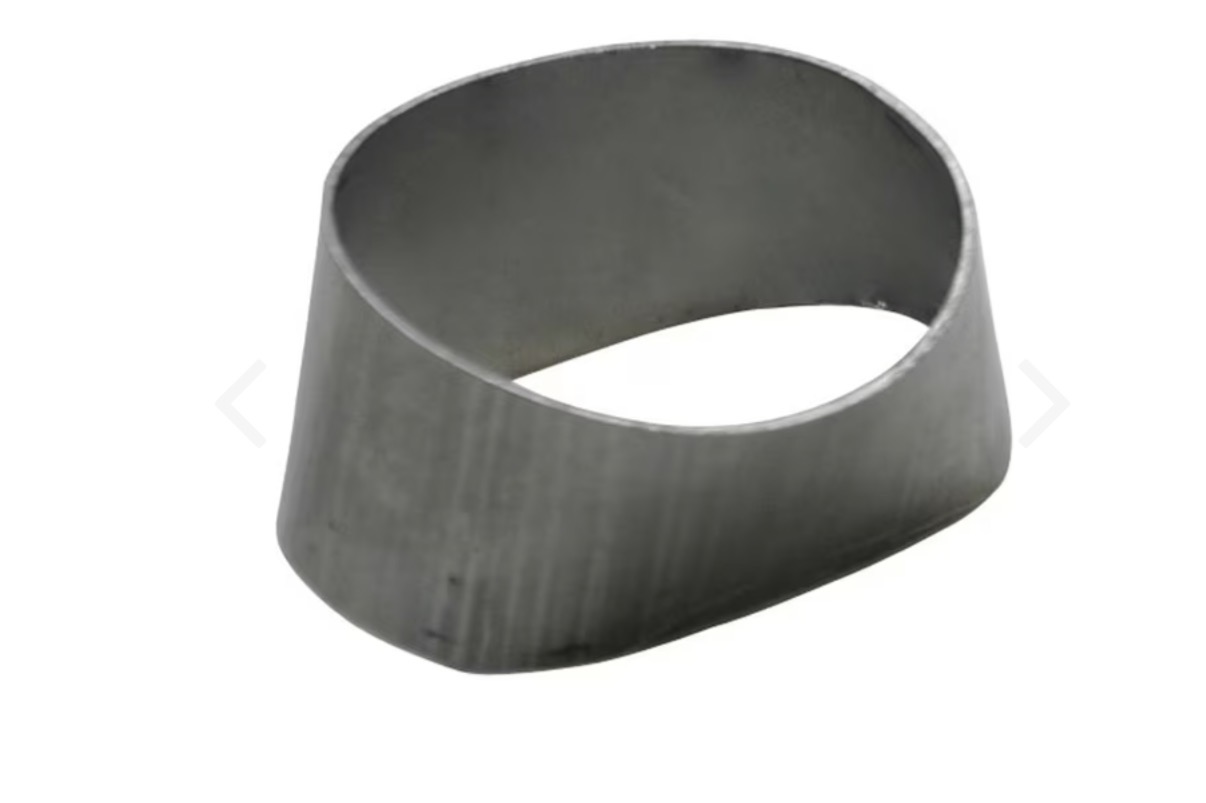

I shortened the downpipe a little to fit this
I hope haha. Wish me luck. 3” oval tubing. More ground clearance and will leave more room from melting the axle boot

: IMG_0192.jpeg (45.3 KiB) Viewed 1455 times

: IMG_0191.jpeg (49.95 KiB) Viewed 1455 times

Posted: **Sat Feb 07, 2026 9:42 am**

Here’s progress so far. No oval tubing. Can’t get it to fit

do you all run 3” tubing? I’m worried about ground clearance and melting things?

: image.jpg (2.69 MiB) Viewed 1412 times

Posted: **Sat Feb 07, 2026 1:18 pm**

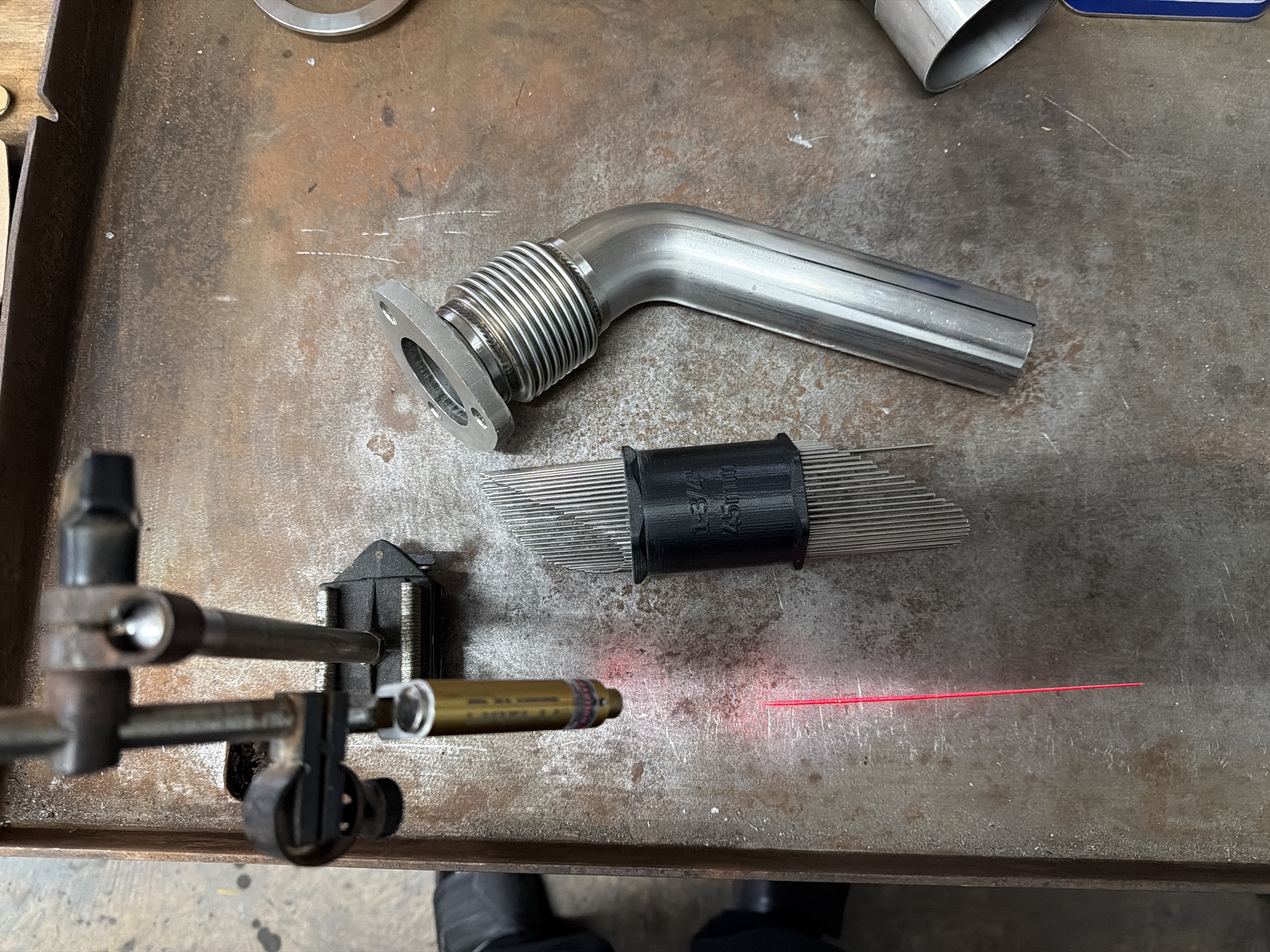

1 3/4 roll cage tool and a serpentine belt alignment tool to merge the wastegate into the downpipe

: image.jpg (2.9 MiB) Viewed 1408 times

Posted: **Mon Feb 09, 2026 9:33 pm**

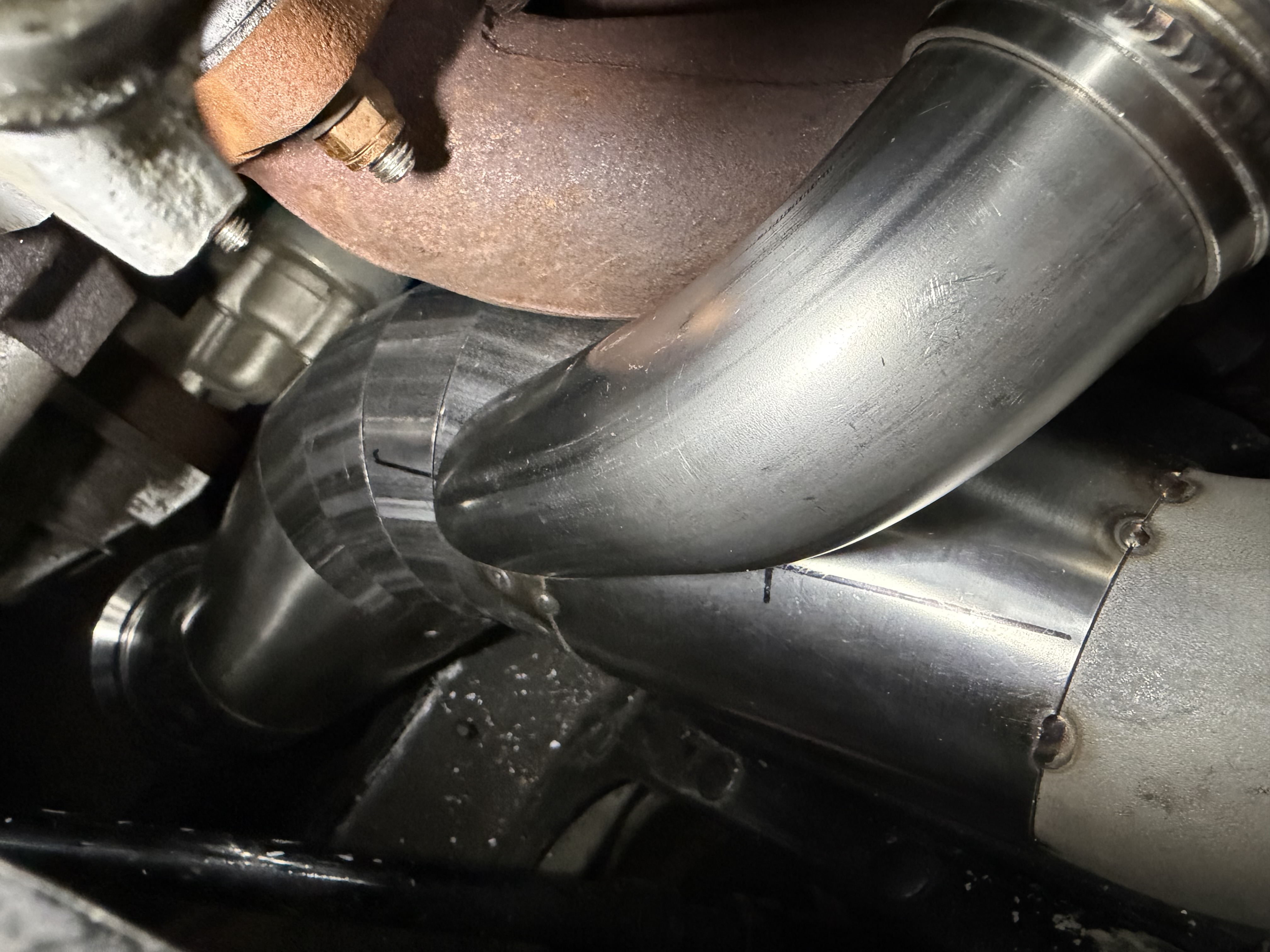

: IMG_0201.jpeg (2.14 MiB) Viewed 1354 times

Posted: **Mon Feb 09, 2026 9:34 pm**

: IMG_0200.jpeg (5.69 MiB) Viewed 1354 times

Posted: **Sat Feb 14, 2026 8:32 am**

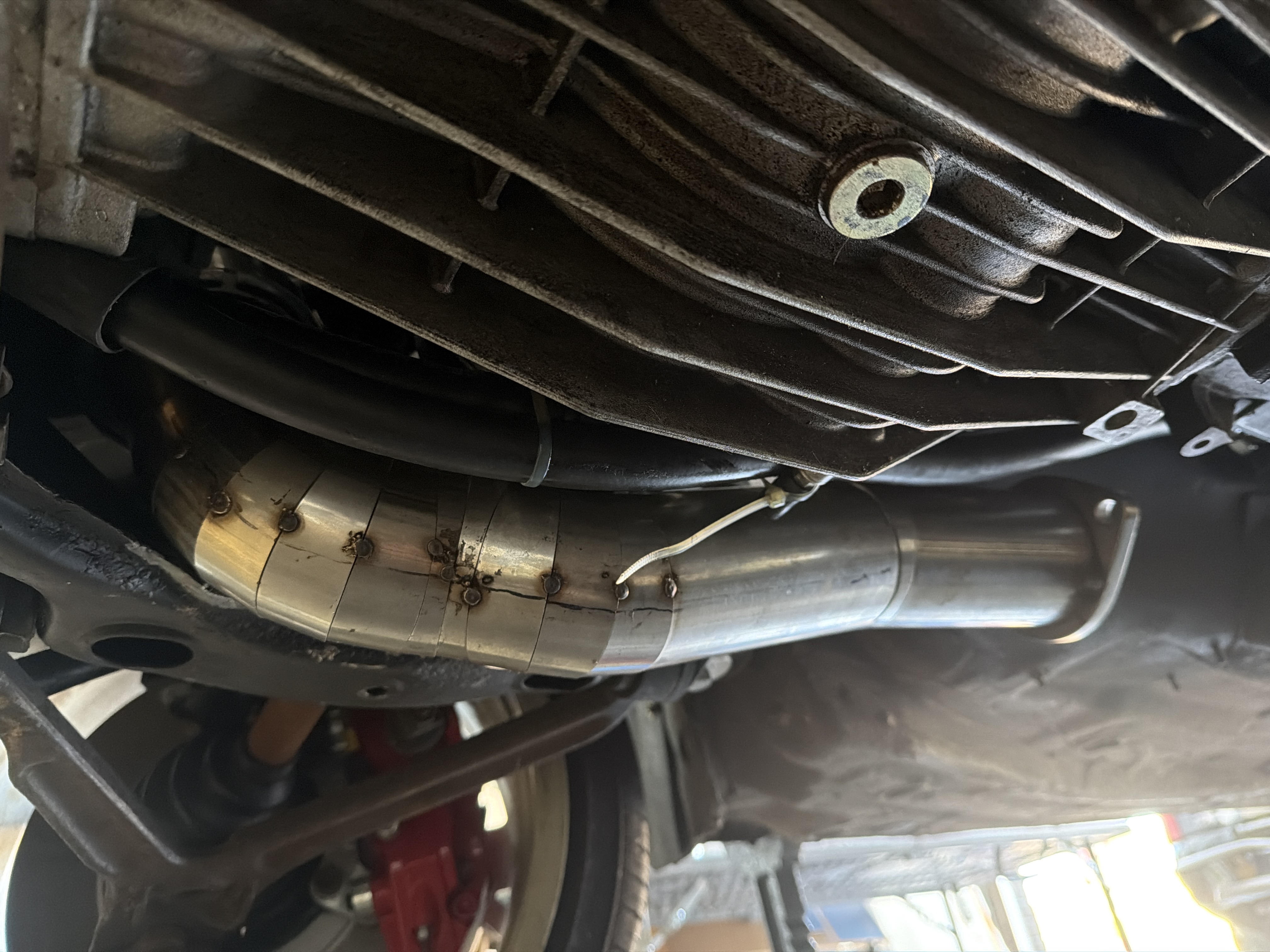

I’ve got 3/4” clearance from the drive axle boot. Heat wrap and a custom heat shield

: image.jpg (1.89 MiB) Viewed 1273 times

Posted: **Wed Feb 18, 2026 7:50 pm**

Let’s see if 16ga 304ss amazon stuff holds up for the flex pipe back

: IMG_0203.jpeg (4.04 MiB) Viewed 1180 times

Posted: **Sat Feb 21, 2026 8:29 am**

: image.jpg (2.92 MiB) Viewed 1069 times

Posted: **Sun Feb 22, 2026 4:59 pm**

: IMG_0234.jpeg (4.36 MiB) Viewed 999 times

Got the downpipes all welded up. Had to take a little off the subframe pinch weld. Doing the heat shields and secondary support bracket now

Posted: **Sat Feb 28, 2026 9:15 am**

1.9 bar / 13.5 psi or 2.2 bar / 17.5 psi?
That is the question
If I was to guess the intake hose at the throttle body popping off is its weakest link.
Bonding silicone to aluminum:
Permabond
Polyolefin primer
Permabond cyanoacrylate 105

: image.jpg (2.8 MiB) Viewed 707 times

Posted: **Thu Mar 05, 2026 1:04 pm**

: IMG_0274.jpeg (4.69 MiB) Viewed 395 times

Posted: **Fri Mar 06, 2026 9:07 am**

there’s only 3 cat back exhaust mounting points
I’m gonna have to fix that. There’s not much room with a 3” pipe in a 2” ditch. I’m debating about just bolting the flex pipe back straight to the car with rubber isolators

Posted: **Fri Mar 06, 2026 1:01 pm**

I bypassed going up and around the diff on mine. It is now the first thing that hits anything. I plan on redoing mine to snake around. Your image looks like what I had I mind. 45deg over the CV. I kinda gave up fitting it correctly. Even the same box of amazon pipe but in 2.5

Hanger situation sucks. My rear oem muffler broke at the welds, so it was my quick fix.

I am not happy with my setup.

Posted: **Sat Mar 07, 2026 8:33 am**

dspl1236 wrote: Fri Mar 06, 2026 1:01 pm I bypassed going up and around the diff on mine. It is now the first thing that hits anything. I plan on redoing mine to snake around. Your image looks like what I had I mind. 45deg over the CV. I kinda gave up fitting it correctly. Even the same box of amazon pipe but in 2.5 Hanger situation sucks. My rear oem muffler broke at the welds, so it was my quick fix.

I am not happy with my setup.

Yes. A 3” 45 degree slightly cocked will go right through with 2 bolts flanges on both ends to get it out without lowering the subframe or axle. There’s only 1/4” of clearance in a bunch of spots going through though. I’m currently figuring out the mounting situation

Posted: **Sat Mar 07, 2026 8:37 am**

There’s room for a muffler under the passenger side rear seat
I’m debating about making one with a little copper and/or other crazy metals to get a different exhaust tone. Already going to have a Flowmaster under the trunk

Posted: **Sat Mar 07, 2026 5:12 pm**

: IMG_0279.jpeg (6.27 MiB) Viewed 234 times

Those -10 push lock hose is too close to the exhaust
Gonna have to make them hard lines up to the bellhousing
